Unmanned Aerial Vehicle and Anti-UAV System
UAVs include reconnaissance/strike UAVs (CH-5, CH-4, CH-3, FH-92A
and FH-901) and multi-purpose reconnaissance UAVs (FH-91, FH-96,
CH-804, CH-10 and FH-902) with maximum operation radius of 250km and
endurance from 1 to 30 h. Featuring high reconnaissance
effectiveness, high anti- jamming capability, diversified payloads,
integrated reconnaissance & strike, easy operation and simple
maintenance, CH and FH series UAVs can be used for military
operations, such as battlefield surveillance, intelligence
acquisition anti-terrorism combat, no-fly zone patrol, firing
calibration, data relay and electronic warfare.
Anti UAV System integrates detect, control and defeat devices to
protect airspace safety.
ZQWJ-700
OVERVIEW

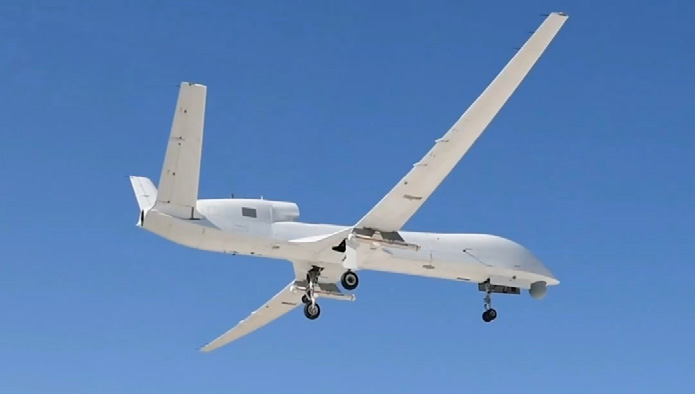

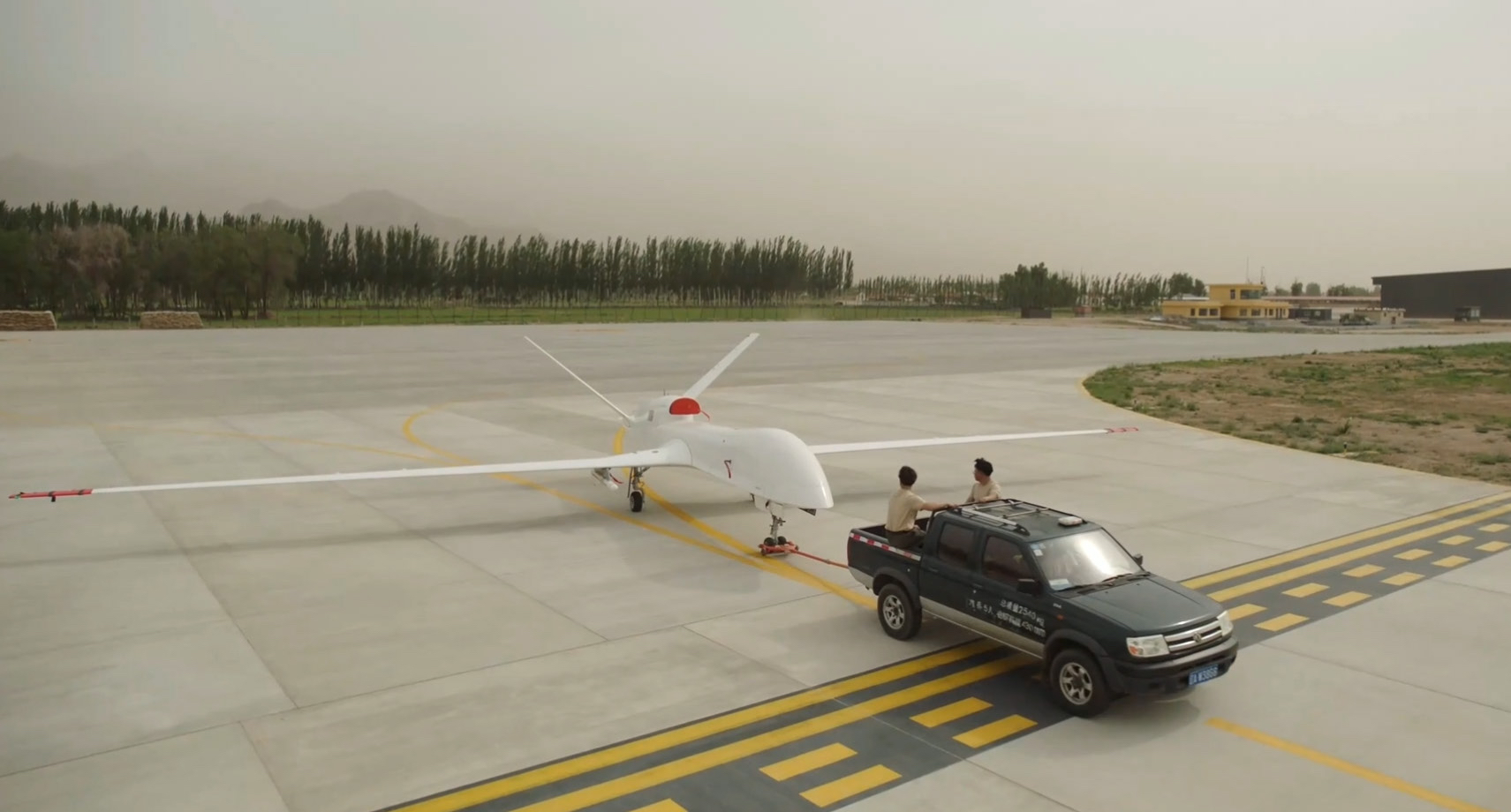

ZQWJ-700 is a strategic multi-purpose large-scale UAV system, which has the characteristics of high speed, high altitude, long endurance, large load capacity and so on.700 UAV uses a turbofan engine.700 has a maximum flight speed of 700km/h,so it can achieve high-speed penetration.The maximum ceiling is 15000 meters, this altitude is beyond the range of air defense missiles equipped by many countries.
It can be loaded with photoelectric pod(EO/IR), multi-functional surveillance radar (SAR/GMTI/MMTI), electronic reconnaissance payload (ELINT) and other mission equipment, and can be externally loaded with air to ground missiles, anti radiation missiles, glide guided bombs and other weapons.
MAJOR FEATURES
- Design of high speed and high altitude
- Design of high stealth
- Wide variety of cutting edge payloads
- Adverse weather capabilities
- Carry kinds of air-to-surface missiles to attack moving targets on the sea and ground
- Carry anti radiation missile to destroy enemy air defense system radar
UAV SYSTEM COMPOSITION
TECHNICAL SPECIFICATIONS
| Task Capability | UAV carries different mission loads and airborne weapons, and has different reconnaissance, surveillance and strike mission capabilities; |
| Endurance | Reconnaissance configuration:14 hours Strike configuration:8hours |
| Plug In Capability | Set 4 hanging points, and the total weight of external hanging is no more than 480KG |
|
Emergency Response Capability |
Self return in case of continuous interruption of TT & C link |
|
Downlink Data Bandwidth |
Sight distance:8Mbps 32Mbps which can be set
externally (sight distance) Satellite:2.048Mbps ~8.192Mbps |
|
Working Environment Temperature And Humidity |
Working temperature: -55℃-60'℃ Humidity: no more than 95% |
| Missiles |
Air to ground missile Gliding satellite guided bomb Anti radiation missile |
| Wing span | 23m |
| Length | 11m |
| Height | 3.4m |
| Maximum Takeoff Weight | 3200kg |
| Maximum Flight Speed | 650km/h |
| Cruise Speed | 300-600km/h |
| Ceiling | 15000m |
| Integrated Navigation Mode | Satellite + inertial integrated navigation mode, in which the satellite receiver has anti-interference ability; |
| Measurement And Control Distance | 250km (line of sight), within the effective coverage of satellite antenna beam (satellite relay); |
| Payloads |
Photoelectric pod (EO/IR)
Multifunctional surveillance radar (SAR/GMTI/MMTI) Electronic reconnaissance load (ELINT) |
