Unmanned Aerial Vehicle and Anti-UAV System

UAVs include reconnaissance/strike UAVs (CH-5, CH-4, CH-3, FH-92A and FH-901) and multi-purpose reconnaissance UAVs (FH-91, FH-96, CH-804, CH-10 and FH-902) with maximum operation radius of 250km and endurance from 1 to 30 h. Featuring high reconnaissance effectiveness, high anti- jamming capability, diversified payloads, integrated reconnaissance & strike, easy operation and simple maintenance, CH and FH series UAVs can be used for military operations, such as battlefield surveillance, intelligence acquisition anti-terrorism combat, no-fly zone patrol, firing calibration, data relay and electronic warfare.
Anti UAV System integrates detect, control and defeat devices to protect airspace safety.

CH-4

OVERVIEW

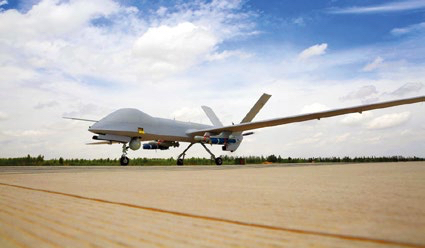

CH-4 is an advanced medium-altitude long-endurance (MALE) tactical UAV system. It can conduct multiple missions, e.g. reconnaissance, precision target location and designation, direct attack, electronic warfare, signal intelligence collection, battle management sensing and digital mapping. The payload adopts a modularized sensor suite including electro-optical and infrared camera, laser range-finder and laser designator, electronic warfare equipment, synthetic aperture radar (SAR), and maritime radar. In addition, CH-4 can also be equipped with more options of combat palyloads, carrying up to 4 weapoms (50kg each, e.g. AGM, PGB), attaining effective strike to time-sensitive targets in asymmetric battles. CH-4 has been inducted by various Users, and its excellent performance has been proven by real war.

MAJOR FEATURES

  • Battle Proven Performance
  • Dual-payload Capacity (EO/IR + SAR)
  • Composite Material Airframe
  • High Maneuverability of System Deployment
  • Long Endurance
  • Satellite Communication Capability
  • Multi UCAVs Missions Coordination

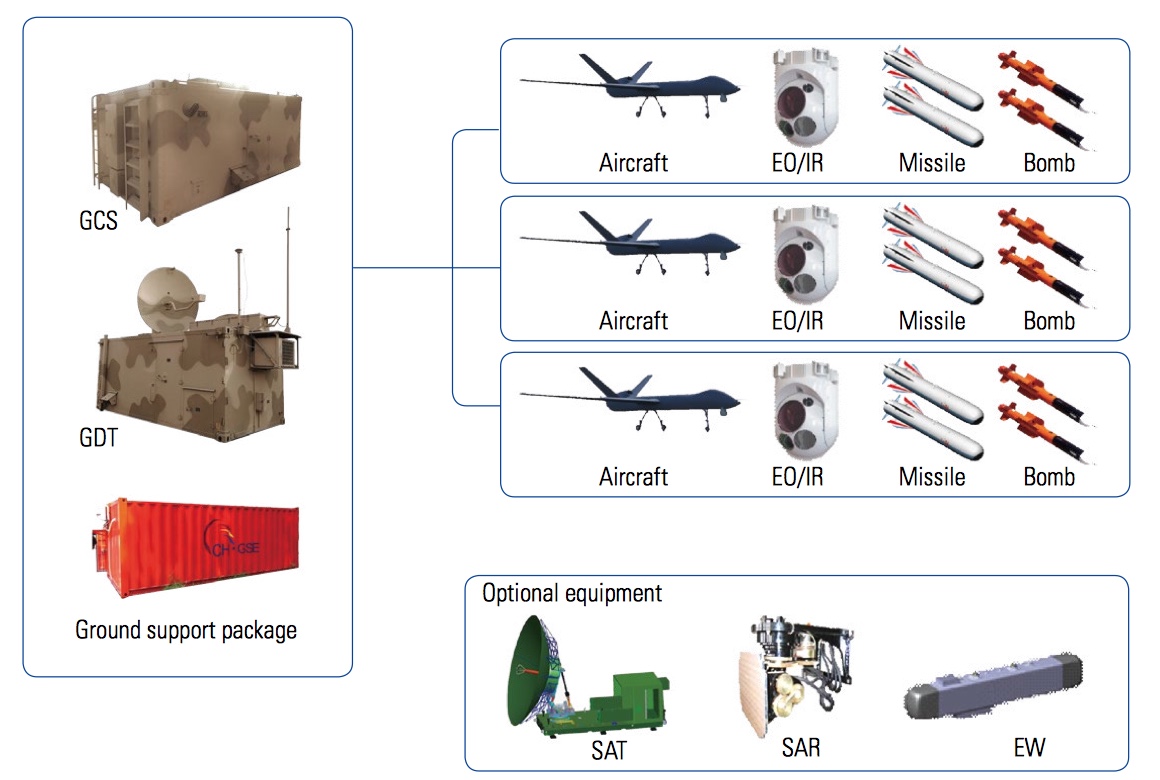

UAV SYSTEM COMPOSITION

SHELL CHEMICALS

TECHNICAL SPECIFICATIONS

Platform Performance Parameters
Take-off Mass 1,350 kg
Payload Capacity 340 kg
Endurance ISR type: 23 h ± 10%
Strike type: 10 h ± 10% (4 missile loaded)
Operation Radius 250 km (LOS)
Max. Range 2,000 km
Ceiling 7,620 m
Cruising Altitude 3,000-6,000 m
Cruising Speed 160-200 km/h
Max. Speed 260 km/h
Launch & Recovery Wheeled
