ZQHW-120
OVERVIEW

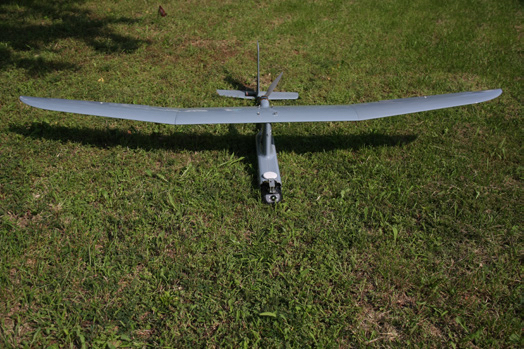

120 is a small portable reconnaissance-and-strike unmanned aerial vehicle (UAV). Based on mission requirement, the UAV system can carry seeker and warhead to conduct reconnaissance and suicide strike missions.120 UAV system is designed for small scale precision strike.
MAJOR FEATURES
- Fully automated flight, simple taking-off;
- Site adaptability: takeoff by bungee catapult;
- Composite materials air-frame, light-weighted and high strength;
- Electric engine, quiet and easy to maintain;
- One ground station to control 3 UAVs simultaneously;
- Carried by 1 people in backpacks, allow rapid deployment and mission planning.
ATTACK MODE
The 120 UAV can be thrown by the operator to conduct reconnaissance.When the UAV finds the target, it will directly hit the target and detonate the warhead to realize suicide attack.
UAV SYSTEM COMPOSITION
TECHNICAL SPECIFICATIONS
| Typical target | Light armored vehicle or personnel |
| Length | 1.7m |
| Wingspan | 2.5m |
| Takeoff weight | 6.2kg |
| Takeoff | Bungee catapult |
| Landing | Belly-in or parachute landing |
| Wind resistance | 10m/s |
| Takeoff preparation time | 5min |
| Withdrawal time | 3min |
| Max. Control radius | 20 km |
| Max. Endurance | 1h |
| Curse speed | 60km/h~90km/h |
| Max. Speed | 120km/h |
| Max. Takeoff altitude | 5000m (MSL) |
| Operational ceiling | 6000m (MSL) |
| Operational altitude | 100m~800m (above ground) |
| Max. Payload weight | 1kg |
| Seeker | TV seeker with 720P revolution |
| Warhead | Blast-fragmentation warhead |
| Attack speed | 120km/h~150km/h |
| Navigation | MEMS Gyro GPS |
| Transmission rate | ≥4Mbps |
| Transmission range | 15 km |
| Storage life | 10 years in packing box in warehouse at humidity less than 80% |
| Operation environment | -20℃to+55℃ |
| Storage environment | -40Cto+65C |
