Air-to-ground Weapon System
The FT series precision guided bombs consist of 500kg (FT-1, FT-2
and FT-12), 250kg (FT-3/3A and FT-6/6A), 100kg (FT-7, FT-7A), 50kg
(FT-9), and less than 25kg (FT-10 and FT-8) aerial bombs with a
maximum delivering range of 150km and an accuracy of up to 1.5 m by
adopting the combined guidance technology. The bombs are mainly used
for attacking fixed or low-speed moving targets on the ground or
water. With the features of long delivering range, high accuracy,
all-weather, day and night, fire-and-forget and high cost
effectiveness, FT series PGB can be carried by bombers, attackers,
fighters and UAVs. Additionally, unguided bomb could be upgraded to
precision guided bomb with high reliability and low cost.
Air-to-ground small-sized series missiles are composed of AR-1,
AR-2, TL-1, TL-2, and TL-3 which can be mounted on UAV. They have
characteristics of low-cost, small-size, high accuracy and can be
loaded on surveillance & attack integrated UAV.
FT-3A
OVERVIEW
The guidance and control system of FT-3A is upgraded from FT-3. By adopting the IR or TV seeker, FT-3A’s accuracy has been enhanced up to 3m. It serves to precisely attack ground construction, bridge, medium or small size command post, airport runway, air defense radar position, port and other fixed ground targets. The conventional 250kg bombs can be modified to FT-3A. It can be equipped on any aircraft that is capable of carrying conventional aerial bombs.
MAJOR FEATURES
- Superior Accuracy
- All-weather, Day and Night
- Fire-and-forget
- High Cost-effective Ratio
SYSTEM COMPOSITION

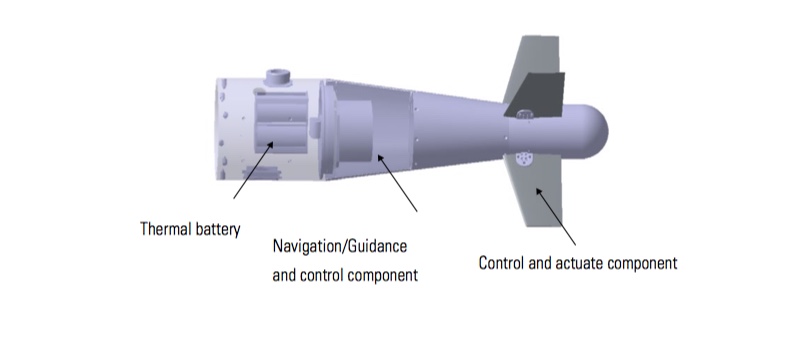

FT-3A consists of warhead, fuze, guidance and control unit, and TV or IR seeker. The main electronic devices are inside the guidance and control cabin, including flight controller, inertial measurement unit (IMU), GPS unit, rudder and thermal battery, etc. The warhead and fuze are inherited from the original 250kg bomb.
TECHNICAL SPECIFICATIONS
| Releasing Altitude | 3,000-10,000 m |
| Releasing Speed | 600-1,000 km/h |
| Max Range | 19 km |
| Accuracy | CEP ≤ 3 m |
| Guidance Mode | SINS / GNSS |
| Attack Mode | Fixed coordinate |
| Allowance Sorties | 10 |
| Accumulated Power Time | ≥ 200 h |
| Weight of Mass | ≤ 240 kg |
| Weight of Warhead | ≤ 210 kg |
| Type of Warhead | Blast warhead |
